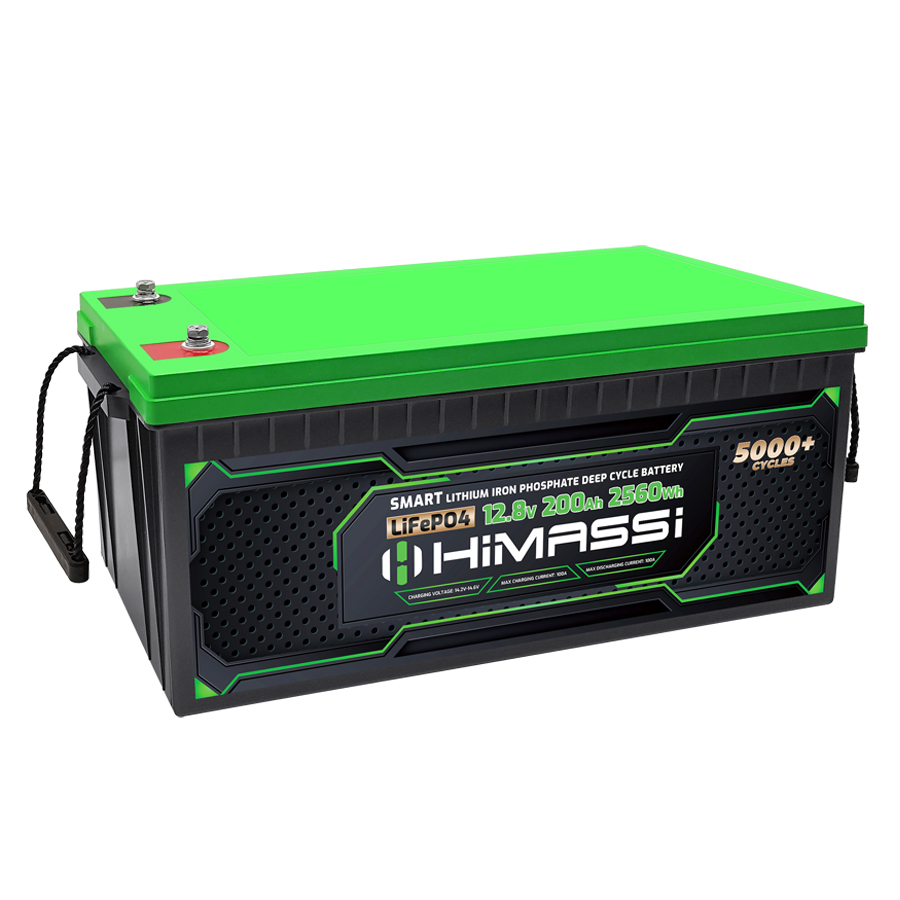

LiFePO4 Battery 12.8V 200Ah

Longer Cycle Life: Offers up to 20 times longer cycle life and five times longer float/calendar life than lead-acid batteries, helping to minimize replacement cost and reduce total cost of ownership.
Lighter Weight: About 40% of the weight of comparable lead-acid batteries. A ‘drop in’ replacement for lead-acid batteries.
Higher Power: Delivers twice the power of lead-acid batteries, even high discharge rate, while maintaining high energy capacity.
Wider Temperature Range: -20 C~60 C.
Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging, or short circuit situations.

Category: 12V Batteries

Typical Applications

Electrical Characteristics	Nominal Voltage	12.8V
	Nominal Capacity	200Ah
	Minimum Capacity	200Ah
	Energy	2560Wh
	Cycle Life	>2000 cycles @0.2C 100%DOD
	Months Self Discharge	<3%
	Efficiency of Charge	100% @0.2C
	Efficiency of Discharge	96~99% @0.2C
	BMS Functions	Over charge, over discharge, over current, short circuit and temperature protection
Standard Charge	Charge Voltage	14.2-14.6V
	Charge Mode	0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV)
	Charge Current	40A
	Max. Charge Current	100A
Standard Discharge	Standard Discharge Current	40A
	Max Continuous Discharge Current	200A
	Discharge Cut-off Voltage	10V±0.5V
Environmental	Charge Temperature	0 ℃ to 55 ℃ (32F to 131F) @60±25% Relative Humidity
	Discharge Temperature	-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
	Storage Temperature	-20 ℃ to 45 ℃ (-4F to 113F) @60±25% Relative Humidity
	IP Class	IP65
Mechanical	Plastic Case	ABS
	Approx. Dimensions	L522xW240xH218mm
	Approx. Weight	23.7kG
