HiMASSi 48V 100Ah LiFePO4 Battery : H100-48V

HiMASSi 48V 100Ah LiFePO4 Battery : H100-48V
HiMASSi 48V 100Ah LiFePO4 Battery : H100-48V - Image 2
HiMASSi 48V 100Ah LiFePO4 Battery : H100-48V - Image 3
HiMASSi 48V 100Ah LiFePO4 Battery : H100-48V - Image 4
HiMASSi 48V 100Ah LiFePO4 Battery : H100-48V - Image 5

Model : H100-48V



🪶 Lightweight
⚡ Fast-Charging
🛡️ Smart BMS Protection



Power your golf cart with reliable, long-lasting HiMASSi LiFePO₄ batteries. Lightweight, fast-charging, and built with advanced BMS protection, they deliver stable performance, longer life, and safer energy — perfect for golf carts and electric vehicles.

0452 268 938
Categories ,
Golf Cart LiFePO₄ Batteries-HiMASSi 48V 100Ah LiFePO4 Battery : H100-48V

Upgrade your golf cart with reliable, long-lasting power from HiMASSi LiFePO₄ batteries. Designed for performance and durability, these batteries deliver consistent energy and exceptional efficiency for every ride.

Key Features:

  • Long Cycle Life: Up to 4000+ cycles, offering years of dependable service with minimal maintenance.
  • Lightweight Design: 50% lighter than traditional lead-acid batteries, improving vehicle efficiency and handling.
  • Fast Charging: Recharge quickly and get back on the course with minimal downtime.
  • Built-in BMS Protection: The integrated Battery Management System safeguards against overcharging, over-discharging, and overheating for maximum safety and lifespan.
  • Stable Power Output: Maintains a steady voltage throughout discharge, ensuring smooth and consistent performance.

Perfect for golf carts, utility vehicles, and other electric transport systems, HiMASSi LiFePO₄ batteries provide the power you need — cleaner, safer, and smarter.

HiMASSi Lithium Golf Cart Batteries — Powering Performance, Every Round.

Technical Parameters









Electrical Characteristics

 Nominal Voltage 51.2V
Nominal Capacity 100Ah
Minimum Capacity 100Ah
Energy 5120Wh
Cycle Life >2000 cycles @0.2C 100%DOD
Months Self Discharge <3%
Efficiency of Charge 100% @0.2C
Efficiency of Discharge 96~99% @0.2C
BMS Functions Over charge, over discharge, over current, short circuit and temperature protection




Standard Charge

 Charge Voltage 56.8-58.4V
Charge Mode 0.2C to 58.4V, then 58.4V,charge current to 0.02C (CC/CV)
Charge Current 20A
Max. Charge Current 100A


Standard Discharge

 Standard Discharge Current 20A
Max Continuous Discharge Current 200A
Discharge Cut-off Voltage 40V±0.5V




Environmental

 Charge Temperature 0 ℃ to 55 ℃ (32℉ to 131℉) @60±25% Relative Humidity
Discharge Temperature -20 ℃ to 60 ℃ (-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature -20 ℃ to 45 ℃ (-4℉ to 113℉) @60±25% Relative Humidity
IP Class IP65


Mechanical

 Plastic Case ABS

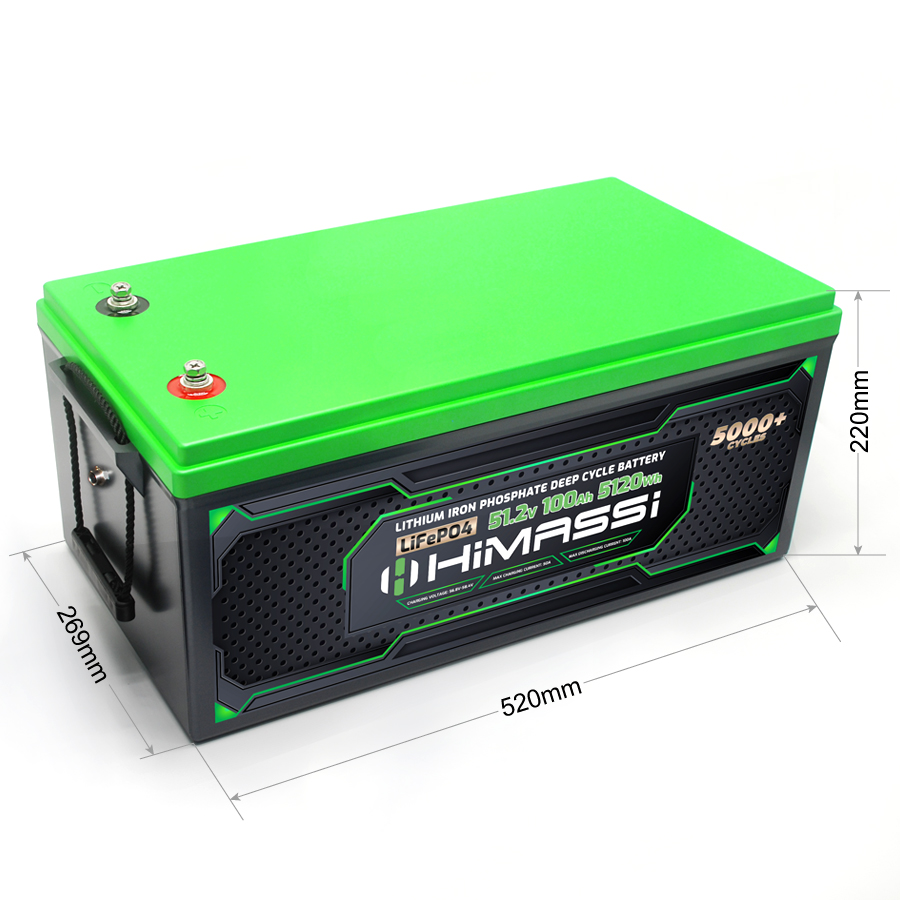

Approx. Dimensions L520*W269*H220mm （20.4*10.5*8.7 inch）
Approx. Weight 38kG

Datasheet

View Product Datasheet (PDF)
