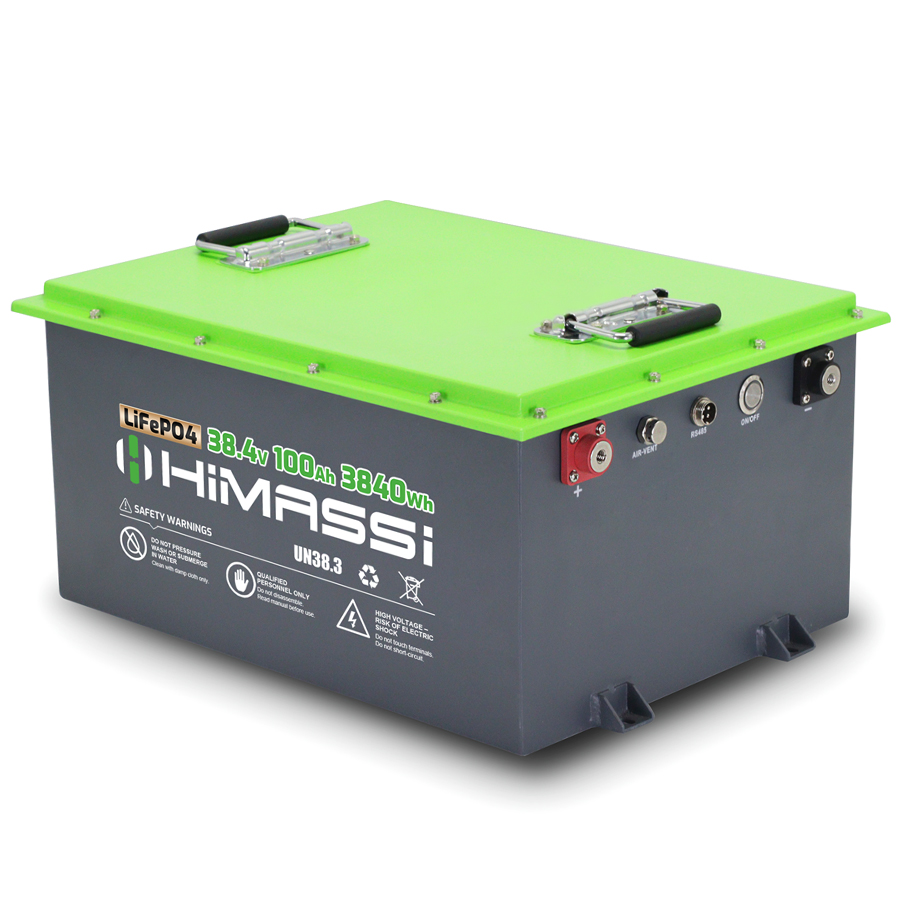

HiMASSi 38.4V 100Ah LiFePO4 Battery : H100-36V

HiMASSi 38.4V 100Ah LiFePO4 Battery : H100-36V

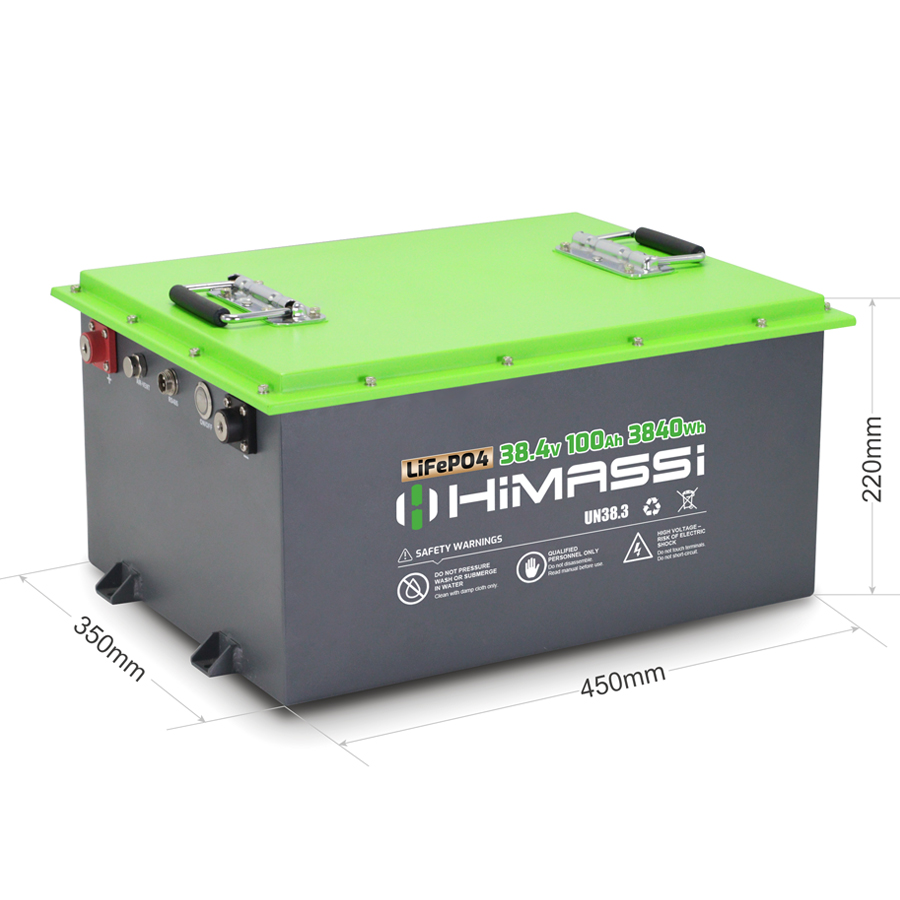

HiMASSi 38.4V 100Ah LiFePO4 Battery : H100-36V - Image 2

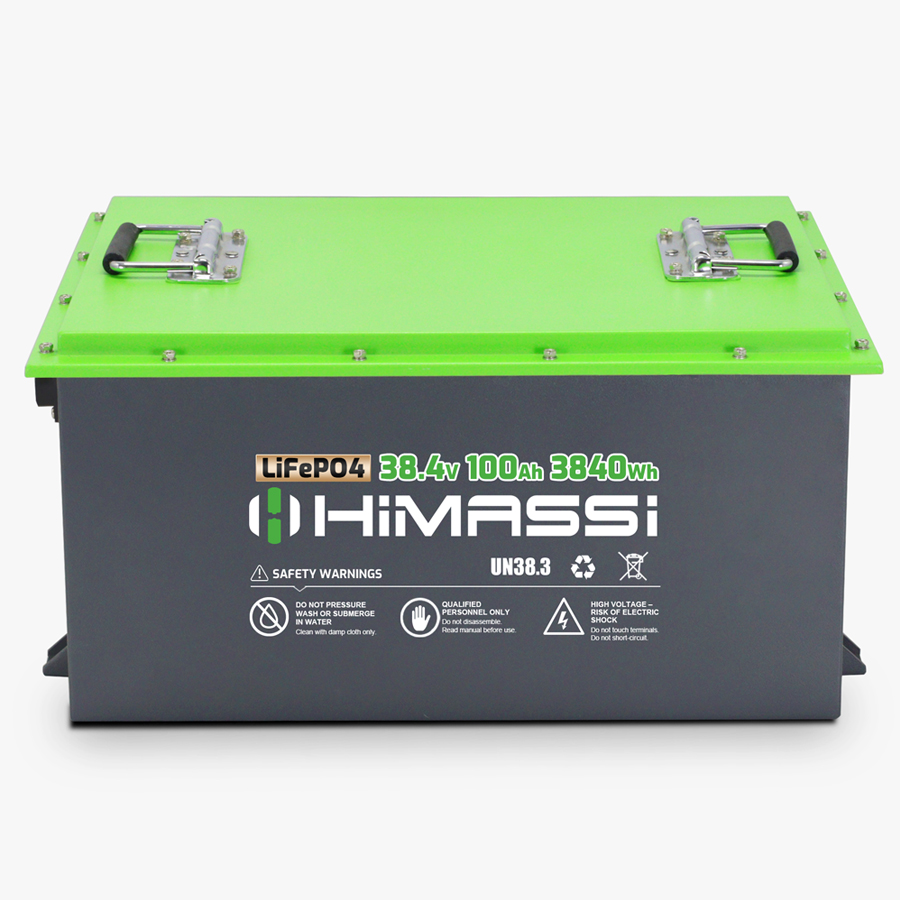

HiMASSi 38.4V 100Ah LiFePO4 Battery : H100-36V - Image 3

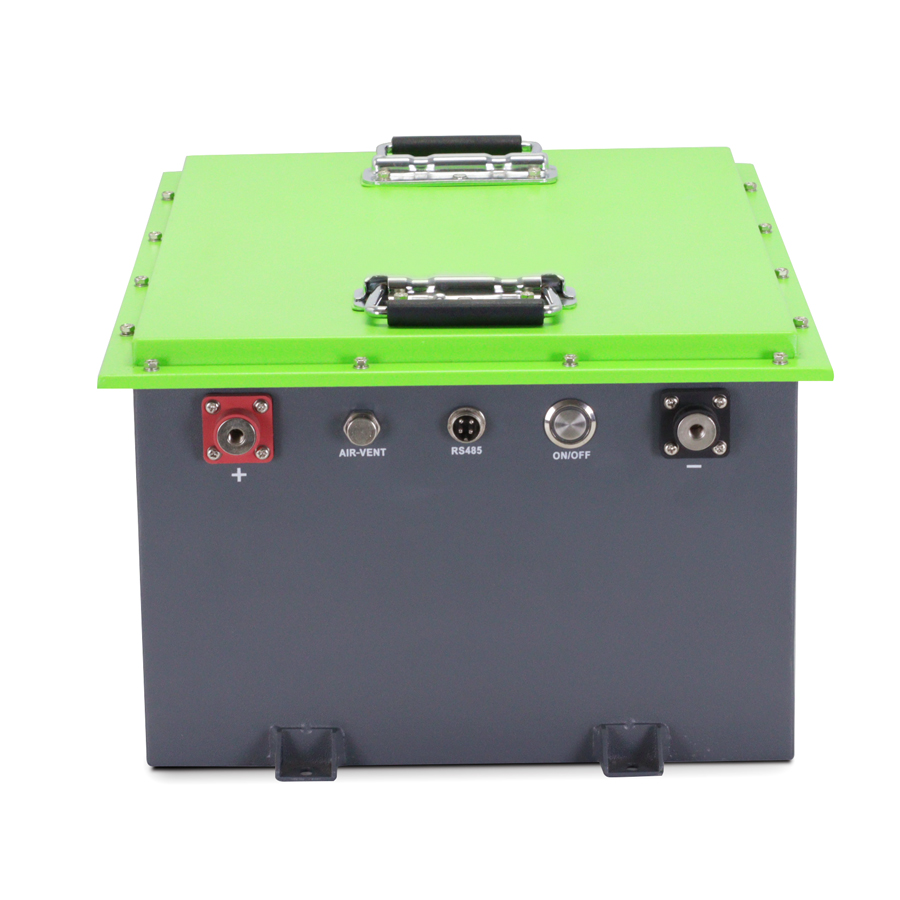

HiMASSi 38.4V 100Ah LiFePO4 Battery : H100-36V - Image 4

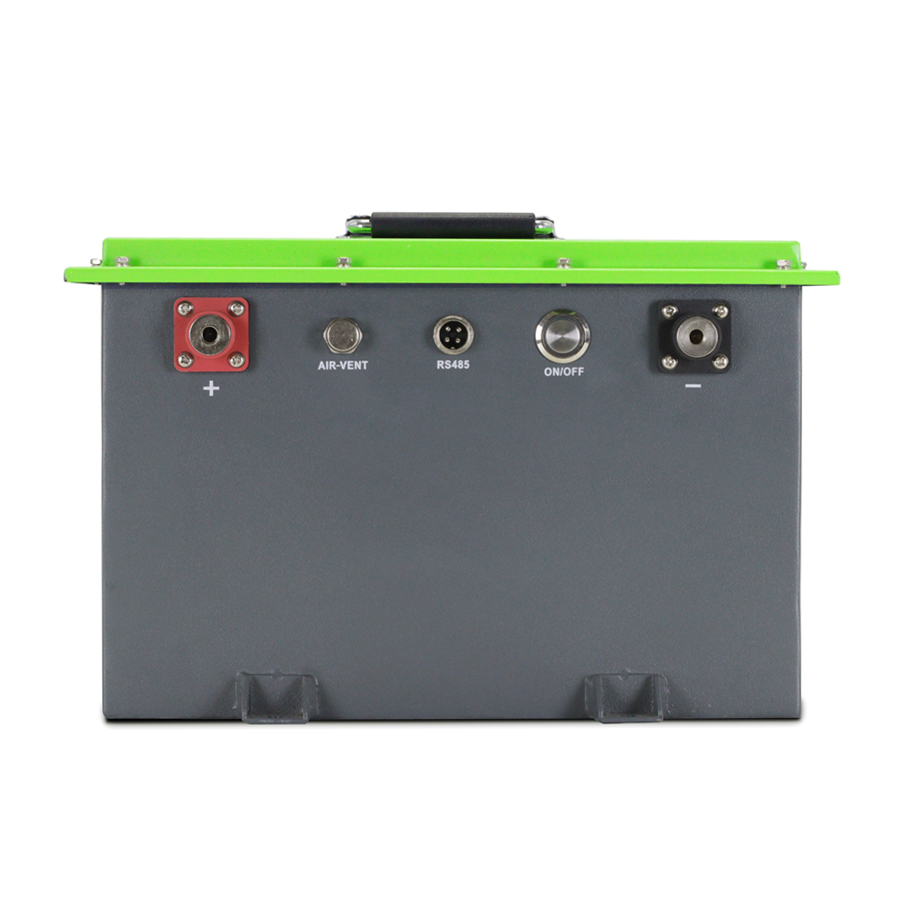

HiMASSi 38.4V 100Ah LiFePO4 Battery : H100-36V - Image 5

Model : H100-36V



🪶 Lightweight
⚡ Fast-Charging
🛡️ Smart BMS Protection
♻️    Environmentally Friendly



Power your golf cart with reliable, long-lasting HiMASSi LiFePO₄ batteries. Lightweight, fast-charging, and built with advanced BMS protection, they deliver stable performance, longer life, and safer energy — perfect for golf carts and electric vehicles.

0452 268 938
Category
Golf Cart LiFePO₄ Batteries-HiMASSi 38.4V 100Ah LiFePO4 Battery : H100-36V

Upgrade your golf cart with reliable, long-lasting power from HiMASSi LiFePO₄ batteries. Designed for performance and durability, these batteries deliver consistent energy and exceptional efficiency for every ride.

Key Features:

  • Long Cycle Life: Up to 4000+ cycles, offering years of dependable service with minimal maintenance.
  • Lightweight Design: 50% lighter than traditional lead-acid batteries, improving vehicle efficiency and handling.
  • Fast Charging: Recharge quickly and get back on the course with minimal downtime.
  • Built-in BMS Protection: The integrated Battery Management System safeguards against overcharging, over-discharging, and overheating for maximum safety and lifespan.
  • Stable Power Output: Maintains a steady voltage throughout discharge, ensuring smooth and consistent performance.
  • Environmentally Friendly:Built to protect the environment for a greener future.

Perfect for golf carts, utility vehicles, and other electric transport systems, HiMASSi LiFePO₄ batteries provide the power you need — cleaner, safer, and smarter.

HiMASSi Lithium Golf Cart Batteries — Powering Performance, Every Round.

Technical Parameters

Specifications
Parameters
Nominal Voltage38.4V
Charge Voltage42.6V-43.8V
Nominal Capacity100Ah
BMS Board200A
Energy3,840Wh
Max Load Power7.68KW
Recommended Charge Current30A
Max Continuous Discharging Current200A
Peak Current1,000 A (3-5s)
Cycle Life4,000 times DOD80% (0.5C)
Working TemperatureCharging: 32 to 131°F (0 to 55 °C) / Discharging: -4 to 140 °F (-20 to 60 °C)
WeightAppro. 35.00kg
Dimension14.6(15.7) x 10.4(11.6) x 8.66inch

370.84 (398.78) × 264.16 (294.64) × 219.96 mm

Recommend Solar Panel Configuration1,100W (Fully charges with effective sunshine 4.5h/day)
Wire(s) for Series & Parallel Connection / Loading4AWG
Efficiency99%

Packing Information

Item
Description / Information
Product NameLiFePO₄ Battery
Model NumberH100-36V
Nominal Voltage (V)38.4V
Nominal Capacity (Ah)100Ah
Battery TypeLithium Iron Phosphate (LiFePO₄)
Carton Dimensions (L×W×H)595*315*300mm
Quantity per Carton1pcs / Carton
Net Weight (kg)35.00kg
Gross Weight (kg)48.00kg
Package TypeInner box + outer carton + wooden pallet
UN NumberUN3480
Hazard ClassClass 9 (Miscellaneous Dangerous Goods)
Transportation ModeAIR / OCEAN / LAND
ComplianceUN38.3 / MSDS
Special Handling InstructionsDo not short-circuit, crush, or expose to fire. Handle with care. Keep dry.

Datasheet

View Datasheet-Himassi 36V100Ah (PDF)

Warranty Policy

3-Year Warranty

We provide a 3-year warranty, starting from the date of delivery.

During the warranty period, we will repair or replace any product found to have defects in materials or workmanship under proper use and application.

This warranty does not cover damage caused by:

  • Misuse, abuse, or accidents
  • Improper installation or maintenance
  • Unauthorized modifications or repairs
  • Normal wear and tear

We are committed to ensuring long-term performance and customer satisfaction with every product we offer.
