Charger Match Batteries 16S*3.65V/50-200Ah

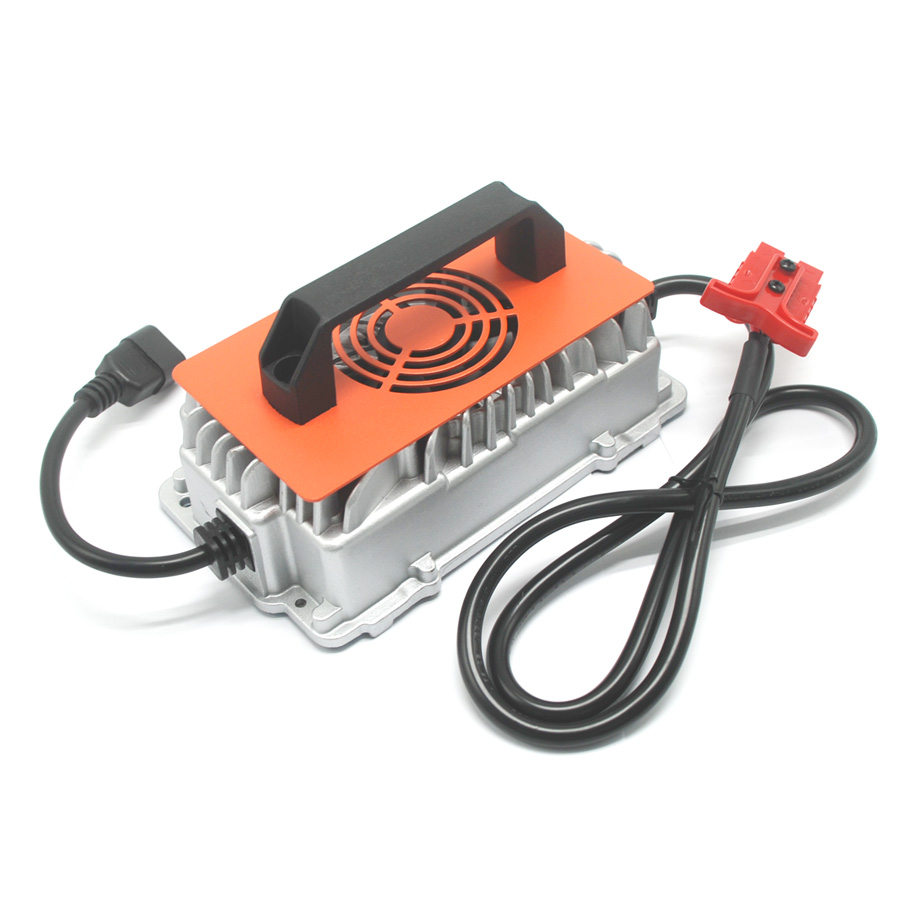

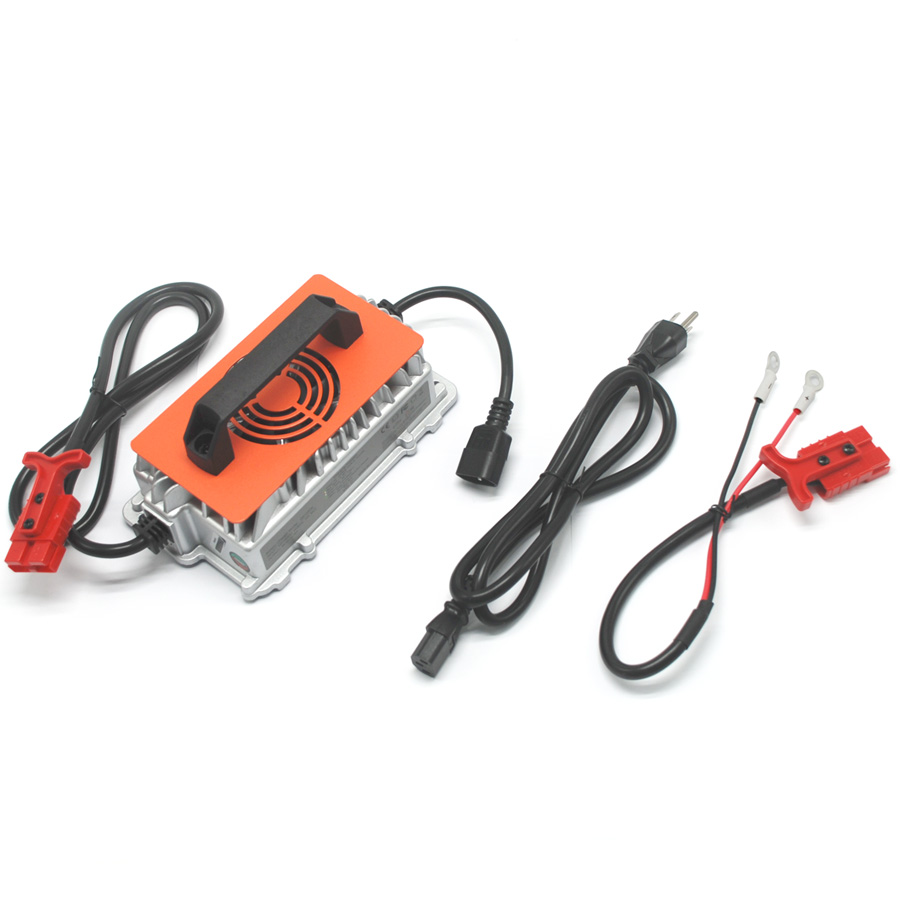

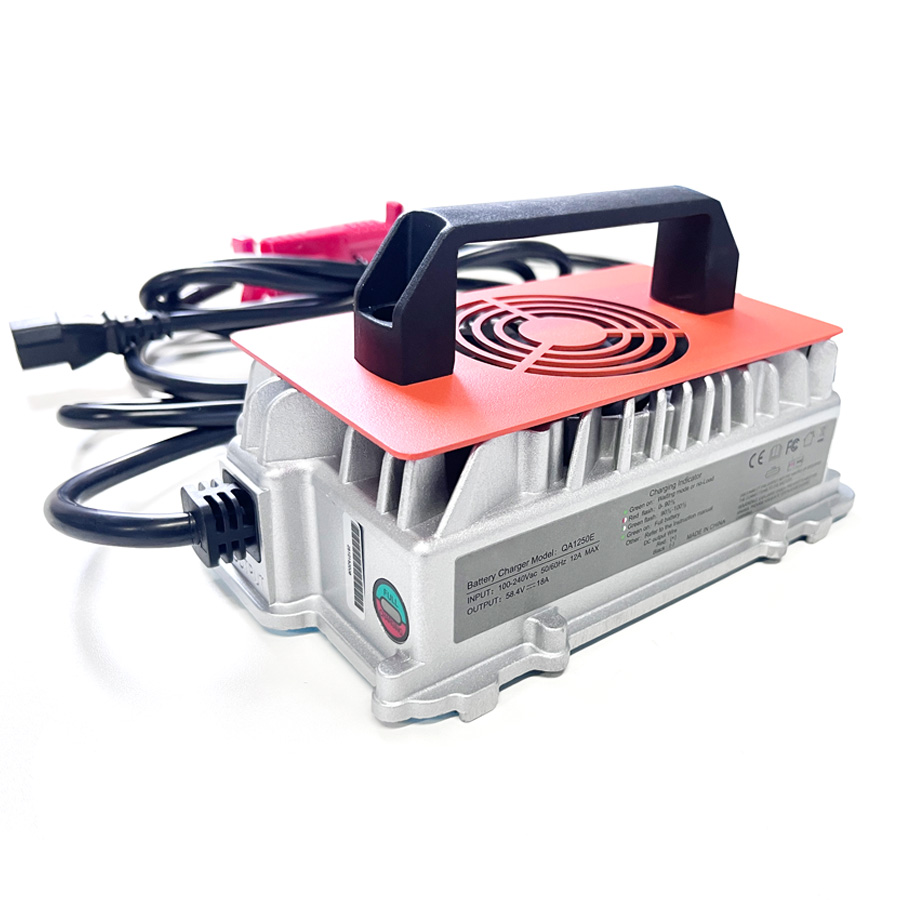

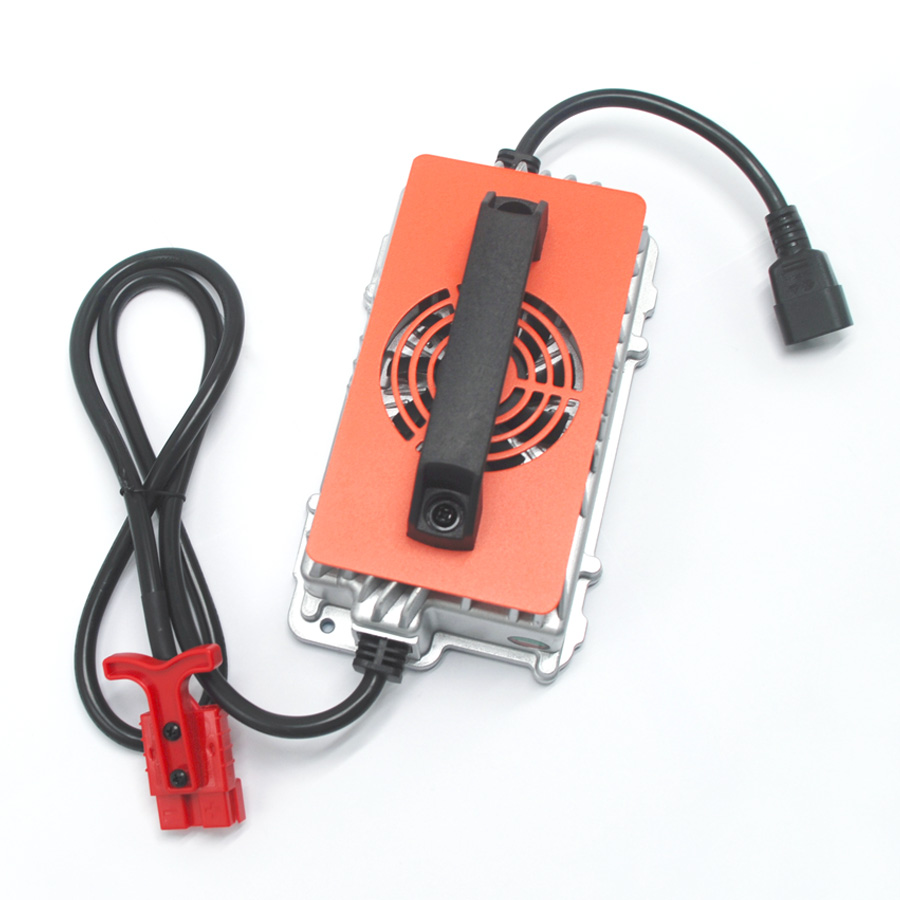

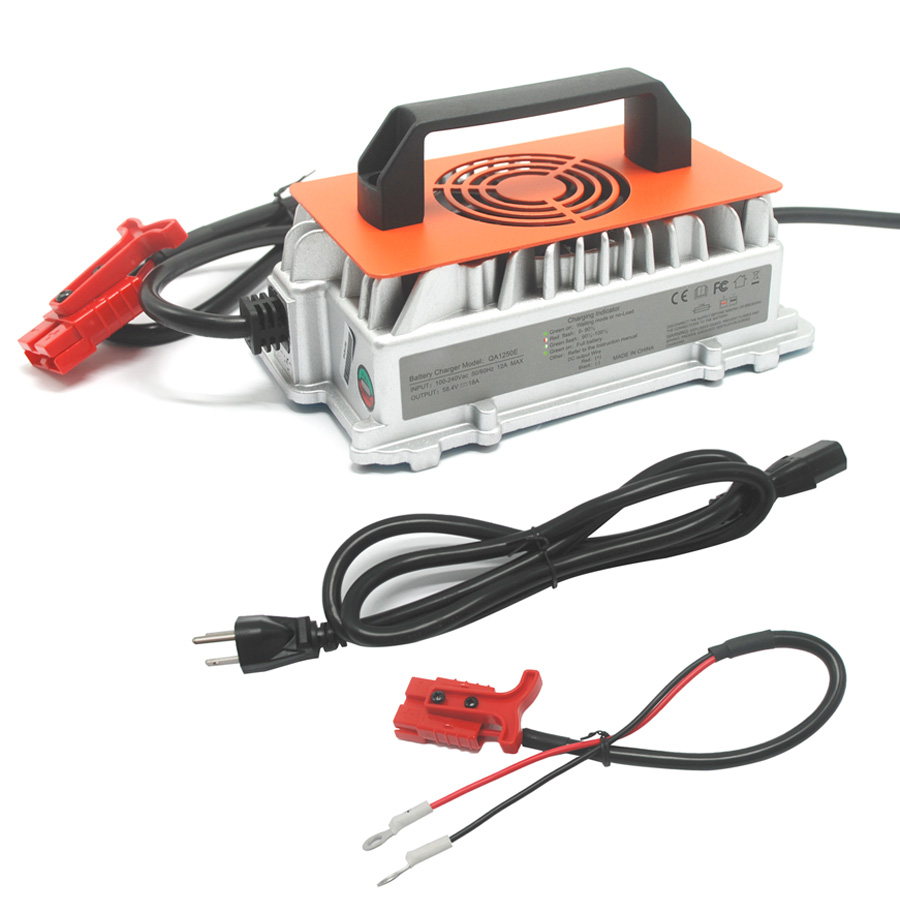

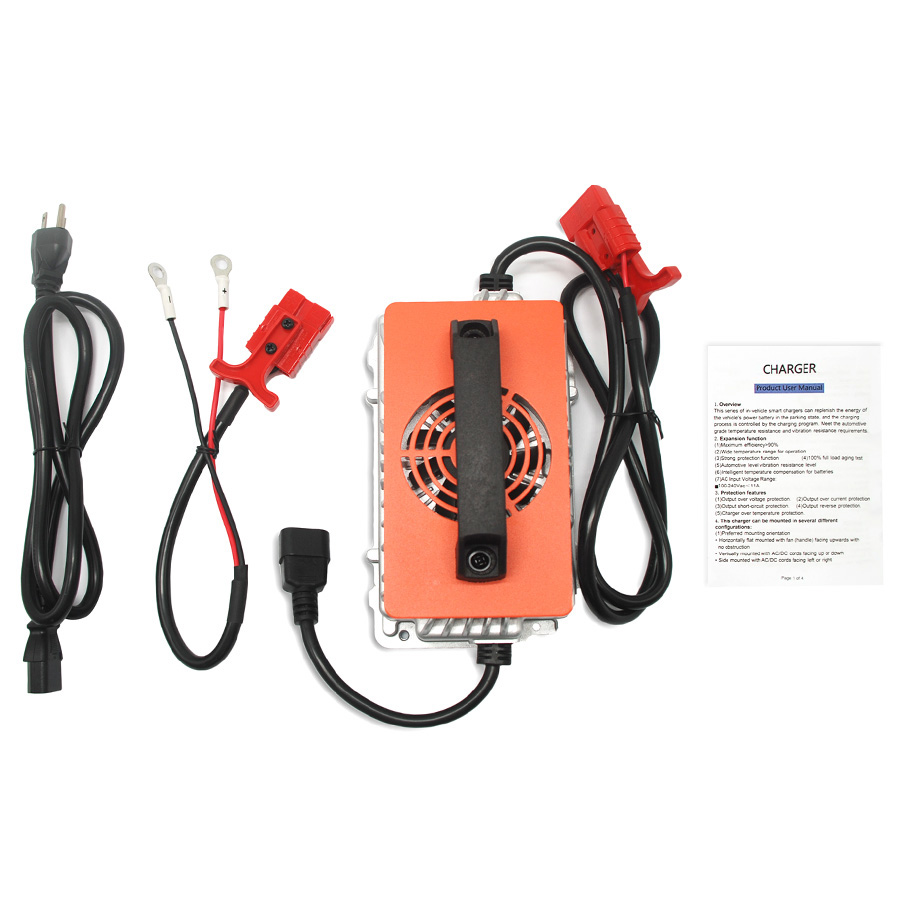

SH1000A -58.4V18A-Battery-Charger
Technical Parameters
| Model | SH1000A -58.4V18A |
| Match Battery | 16S*3.65V/50-200Ah |
| Rated Output Current | 18A (DC) |
| Input Power | Input Voltage and Frequency:
Single-phase : 90-264Vac frequency: 50Hz – 60Hz *When the range of input voltage is from 90Vac to 170Vac need reduce power running Input Current : 12A max. 115Vac input & Full load (25℃) 8A max. 230Vac input & Full load(25℃) |
| Rated Output Power | 1250W |
| Input Cable Specs | 3*1 ² / 1.2 meter (customize available) |
| Power Factor | 0.95 |
| Output Cable Specs | 2*2.5 ² /1.1 meter (customize available) |
| Output Connector | OT-8 terminals (customize available) |
| Charge Mode | Lithium battery blind charging
Charging voltage: Vmax= 58.4V DC Charging current: Imax= 18.0A DC |
| Protect Function | 1. Input voltage abnormal protection
2. Hardware over voltage protection 3. Short circuit protection 4. Under voltage protection 5. Anti-reverse polarity protection 6. Over temperature protection 7. Timing protection |
| Use Environment | -20℃to +45℃.
20% RH to 85% RH. Note: The temperature rise when the charger is under operation shall less than 30℃(△T) |
| Weight | 2.53kg |
| Dimension | 231.9*136.5*115.4(mm) |
